250W Poly Solar Panels with IEC Certification for Roof Solar System

FOB Reference Price:Get Latest Price
US $0.31-0.34 / Watt | 7000 Watt/Watts (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
TOPKSY
Model Number:
TP-P250W
Material:
Polycrystalline Silicon
Size:

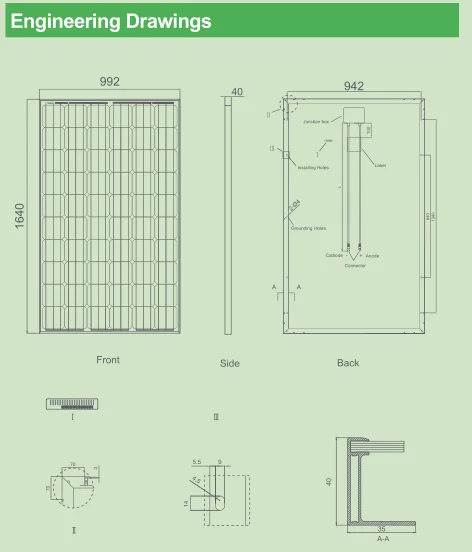

1640*992*45mm
Number of Cells:
60PCS
Max. Power:
250W
solar cells:
A Grade 6*6inch Poly Solar Cells
Cells Quantity:
60pcs
colour:
black, blue
Certificate:
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Junction Box:
TUV Certificate IP65 Waterproof
Frame:
Anodized Aluminium Alloy
Application:
Roof Solar System or Power Plant
Warranty:
25 Years Output Power Guarantee
Packaging & Delivery
Packaging Details
25pcs/pallet, 300pcs/20ft container, 700pcs/40HQ
Delivery Time
Shipped in 7 days after payment

We regularly have large stock of solar panels from 250W-300W. Made by top brand solar cell from Taiwan and China.

All material are the best.

A Grade quality, very good price

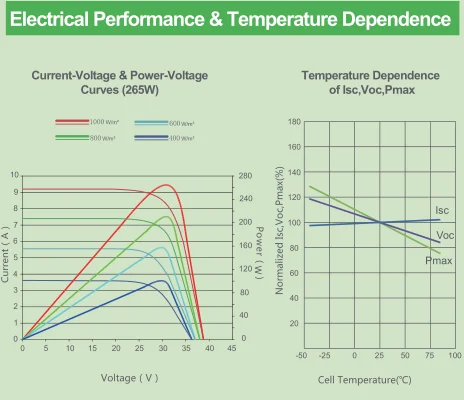

Module TypeTP-245PTP-250PTP-255PTP-260P  TP-265P
  STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
 Maximum Power(Pmax)245Wp181Wp 250Wp 184Wp 255Wp189Wp 260Wp 193Wp 265Wp197Wp
 Maximum Power Voltage (Vmp) 30.1V 27.8V 30.5V  28.0V  30.8V 28.5V  31.1V  28.7V  31.4V 29.0V
 Maximum Power Current(Imp)  8.14A 6.50A  8.20A  6.56A  8.28A6.63A  8.37A  6.71A  8.44A 6.78A
  Open-circuit Voltage(Voc) 37.5V  34.8V  37.7V 34.9V  38.0V 35.2V  38.1V  35.2V  38.6V  35.3V
  Short-circuit Current(Isc) 8.76A 7.16A 8.85A  7.21A  8.92A 7.26A  8.98A  7.31A  9.03A  7.36A
  Module EfficiencySTC(%)    14.97%15.27%    15.58%    15.89%    16.19%
  OperatingTemperature(℃)-40℃~+85℃
  Maximum system voltage1000VDC (ETL)
  Maximum series fuse rating15A
  Power tolerance0~+3%
 Temperature coefficients of Pmax -0.41%/℃
  Temperature coefficients of Voc -0.31%/℃
  Temperature coefficients of Isc0.06%/℃
  Nominal operating cell temperature(NOCT)45±2℃



  STC: Irradiance1000W/m2    CellTemperature25°C   AM=1.5



  NOCT:   Irradiance800W/m2     AmbientTemperature20°C    WindSpeed1m/s
